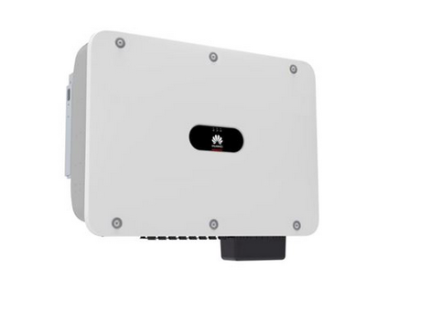

Inverter 50kW Huawei SUN2000-50KTL-M3

Max. Efficiency 98.5%
European Efficiency 98.0%
Input
Max. Input Voltage 1 1,100 V
Max. Current per MPPT 30 A
Max. Current per Input 20 A
Max. Short Circuit Current per MPPT 40 A
Start Voltage 200 V
MPPT Operating Voltage Range 2 200 V ~ 1,000 V
Rated Input Voltage 600 V
Number of Inputs 8
Number of MPP Trackers 4
Output
Rated AC Active Power 50,000 W
Max. AC Apparent Power 55,000 VA
Max. AC Active Power (cosφ=1) 55,000 W
Rated Output Voltage 400 Vac / 480 Vac, 3W+(N) + PE
Rated AC Grid Frequency 50 Hz / 60 Hz
Rated Output Current 72.2 A @ 400Vac, 60.1 A @ 480Vac
Max. Output Current 79.8 A @ 400Vac, 66.5 A @ 480Vac
Adjustable Power Factor Range 0.8 LG … 0.8 LD
Max. Total Harmonic Distortion <3%
Protection
Input-side Disconnection Device Yes
Anti-islanding Protection Yes
AC Overcurrent Protection Yes
DC Reverse-polarity Protection Yes
PV-array String Fault Monitoring Yes
DC Surge Arrester Type II
AC Surge Arrester Type II
DC Insulation Resistance Detection Yes
Residual Current Monitoring Unit Yes
Arc Fault Protection Yes
Ripple Receiver Control Yes
Integrated PID Recovery 3 Yes
Communication
Display LED Indicators, Bluetooth + APP
RS485 Yes
Smart Dongle WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional)
4G / 3G / 2G via Smart Dongle-4G (Optional)
Monitoring BUS (MBUS) Yes (Isolation Transformer required)
Optimizer Compatibility
DC MBUS Compatible Optimizer MERC-1100/1300W-P
General Data
Dimensions (W x H x D) 640 x 530 x 270 mm (25.2 x 20.9 x 10.6 inch)
Weight (with mounting plate) 49 kg (108.1 lb)
Operating Temperature Range -25°C ~ 60°C (-13°F ~ 140°F)
Cooling Method Smart Air Cooling
Max. Operating Altitude 4,000 m (13,123 ft.)
Relative Humidity 0% RH ~ 100% RH
DC Connector Amphenol HH4
AC Connector Waterproof Connector + OT/DT Terminal
Protection Degree IP 66
Topology Transformerless
Nighttime Power Consumption ≤ 5.5W
