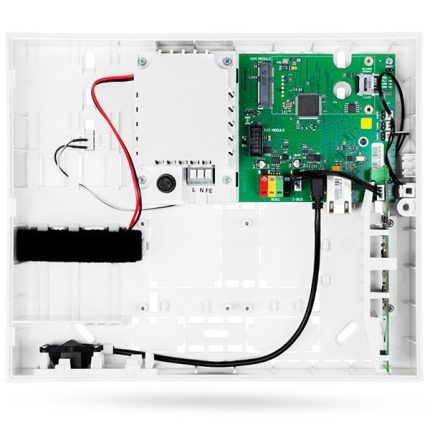

Jablotron JA-103KR centrala

JA-103KR centrala za protivprovalni, protivpožarni, protivpoplavni sistem + sistem pametne kuće * Besplatan Cloud, SMS i Push Up obaveštenja * Kontrola preko aplikacije, računara ili tastature * Memorija na serveru i u SD kartici (do7 miliona događaja), Auto-dijagnostika, tačan prikaz stanja baterija i RF signala * LAN konekcija, proširivo na GSM modulom JA-192Y * do 50 bežičnih ili BUS adresa * do 50 korisnika * 8 particija * do 32 PG izlaza *

The required adjustments and sizing of the system are programmed through the F-Link software (from version 2.0.0).

The JA-103K control panel offers:

• 50 wireless or bus devices
• 50 users
• 8 sections
• 32 programmable PG outputs
• 20 mutually independent calendar events
• 8 user SMS and voice reports
• 5 ARCs can be set
• 5 selectable protocols for an ARC

The control panel has:

• 1 terminal board for bus connection
• 1 connector for a built-in radio module (JA-111R)
• 1 connector for a GSM/GPRS communicator (JA-192Y)

The control panel also offers functions such as:

• Maintenance
• Day/night mode
• Short departure response
• Automatic setting
• Advanced calendar features

The following products with the control panel ARE NOT COMPATIBLE:

• JA-180A (wireless outdoor siren)
• JA-154J (bi-directional remote control)
• JA-190X (PSTN communicator module)

The following products with the control panel ARE COMPATIBLE under certain conditions:

• The JA-112E (keyboard) is compatible with FW LU61501 and higher
• The JA-113E (keyboard) is compatible with FW LU61601 and higher
• The JA-118N (PG Bus Output Module) is compatible with LY68003 and higher
  • FW version LY68002 and lower works only when the PG range is set in the F-Link up to a maximum value of 32
• The JA-110I (section or PG bus indicator) is compatible only when the PG range is set in the F-Link up to a maximum value of 32
