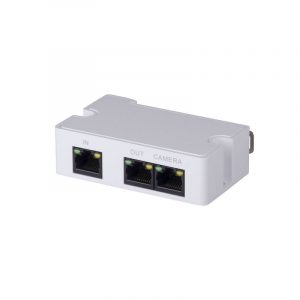

Dahua POE extender PFT1300
PoE Extender
> Support passive PoE cascade power supply and Ethernet data exchange
> Support IEEE 802.3af/at standard power supply IP Camera
> Cooperate with High PoE Midspan (PFT1200), able to cascade level 2 PoE Extender, connect to 3 IPC (total power consumption ≤25W), max transmission distance 300m
> 1*RJ45 10/100M PoE power supply input; 1*RJ45 10/100M supply power for IP Cam; 1*RJ45 10/100M supply power for the next extender
> Installation mode: junction box internal mounting, DIN rail mounting
Video balun DAHUA DH-PFM800 4K
25.00 KM
Prijenos u stvarnom vremenu putem UTP CAT5E / 6 kabla;
> Pasivno, nema potrebe za napajanjem;
> Izvrsne sposobnosti protiv grmljavine, antistatike i smetnji;
> Kompatibilni format: HDCVI / TVI / AHD / CVBS;
> Sa ženskim BNC priključkom i priključnim vijčanim priključcima.

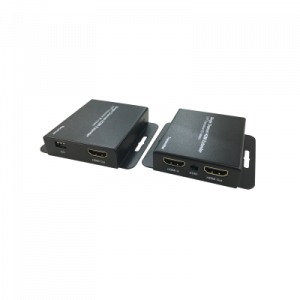

HDMI extender PFM700-E Dahua
Power supply: Input voltage DC5V, only supply for transmitter.
Transmission effect: Real-time transmission HDMI video signal, no delay, strong anti-interference.
Transmission distance: HDMI transmission distance 50m (max.164ft), with CAT6 of pure copper cable(DC
impedance is less than 9.5 ohm for every 100 meters(328ft)).
Infrared function: support to transmit one-way infrared remote control signal.
Main functions: Use single UTP (CAT-5E and CAT-6) to transmit 1-ch HDMI video signal, support HDMI
1.3; Support HDMI local loop output; Support EDID.
Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities.
Appearance structure: No need to install driver program and set network parameters, easy to use and
convenient to install
Transmission effect: Real-time transmission HDMI video signal, no delay, strong anti-interference.
Transmission distance: HDMI transmission distance 50m (max.164ft), with CAT6 of pure copper cable(DC
impedance is less than 9.5 ohm for every 100 meters(328ft)).
Infrared function: support to transmit one-way infrared remote control signal.
Main functions: Use single UTP (CAT-5E and CAT-6) to transmit 1-ch HDMI video signal, support HDMI
1.3; Support HDMI local loop output; Support EDID.
Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities.
Appearance structure: No need to install driver program and set network parameters, easy to use and
convenient to install

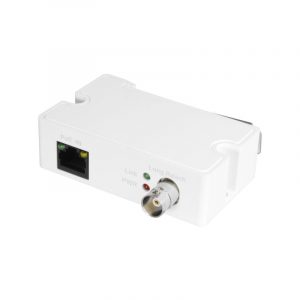

Dahua Single-Port Long Reach Ethernet over Coax Extender LR1002-1EC
> Supports IEEE802.3, IEEE802.3u standards
> Supports IEEE802.3af and IEEE802.3at power supply standards
> Port: 1*RJ45 10/100Mbps, 1*BNC
> Supports RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps
> Supports MDI/MDIX self-adaption
> Supports long range power supply transmission via coaxial cable
Dahua DH-PFM881 5G wireless video transmission
Support outdoor temperature：-30°C~70°C,industrial design;Wireless coverage recommended range≤3km;Radio-frequency mouth anti-thunder reaches 15KV ESD;Support auto ranging function, real time display straight line distance between client and base station;Support device auto reboot function;5Gmode support 5745~5825MHz(extended range: 4920~6100MHz);Support flow control, effectively control base station/client input/output flow control;Support VLANpartition, realize virtual local network function, control broadcast stormSupport 802.1xauthentication method, effectively guarantee client access control, provide access safety.Support client priority setting, better dispatch each client when the mode is point-to-multipoint Support multiple channel option(5M/10M/20M/40M), effectively improve anti-interference and penetration capability
